1. Applicable industries and materials
1. Furniture: paint-free wooden doors, cabinet doors, panel furniture, office furniture, etc.
2. Wood products: musical instruments, cutting boards, tea tables, game cabinets, computer tables, etc.
3. Industry: insulating parts, plastic parts; PCB; inner body of train, bowling track, stairs; cutting and milling type of carbonized mixture such as anti-folder board, epoxy resin, ABS, PP, PE
4. Material: milling, cutting, chamfering and other processing of acrylic, PVC, density board, artificial stone, organic board, plexiglass, plastic and other materials
2. Equipment features:
1. The disc type double tool magazine design can realize automatic tool change of 20 tools and improve production efficiency
2. Italy SCM electric spindle, support ISO30 ER32 tool installation
3. Full screw drive, high precision and long life. X and Y are fixed by screw and screw nut rotates structure, high-speed stable and reliable
4. The lubrication system is automatically exhausted, and the software controls the timing and quantitative refueling
5. The electrical cabinet adopts temperature control device and dust-proof filter device to protect electronic components
6. The overall design of the beam and the beam seat, the equipment has high rigidity and precision, and the diagonal error of the workpiece is less than 0.1mm. The guide rail is fixed on the base, and the guide rail screw is fully enclosed.

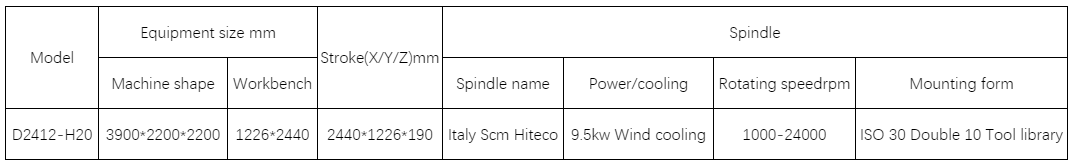

3. Technical parameters:
4, equipment application:
