Equipment characteristics:
For the rapid processing equipment of panel custom furniture, the store quickly responds to the factory ERP system after receiving the order, and completes the entire order-dismantling-processing-packing-delivery process through various data instructions. The intermediate link does not require manual labor and realizes intelligence 4.0 Unmanned factory processing mode.
1. Spindle part
1. The equipment is equipped with a high-speed router spindle imported from Italy (water-cooled spindle/automatic tool change spindle is optional), which is used to replace the traditional upper router and lower router for rapid cutting, cutting, drilling, Milling process.
2. Optional modules are added ① Drilling set: Italy (Taiwan) 7 vertical + 2 horizontal drilling set, used for vertical and horizontal quick drilling of panel furniture.
② Circular saw: Servo control, can achieve 180° free angle directional cutting, and can also be used for regular and precise cutting of panel furniture.
Spindle diagram
2、Features:
1. The sturdy body is a high-rigidity gantry structure, and the beam and beam seat are integrally designed. The internal ribs strengthen the frame, special stress relief treatment, and the larger body ensures the rigidity and stability of the machine structure.
2. Follow-up hat type tool changer tool magazine: The capacity of the tool magazine is optional: 10 and 20 positions.
3. The whole equipment adopts lead screw drive. The X-direction design of the transmission mode of the screw fixed screw nut rotation increases the transmission length to diameter ratio and improves the accuracy retention.
4. Use Philips high-speed QR code printer to automatically sense the loading and unloading workbench. The software can freely choose the intelligent processing links required by the factory in printing barcodes, automatic feeding, automatic processing, automatic blanking, automatic edge banding, and automatic punching. .
3, system, drive
1. Taiwan's new generation 10A-4D series incremental value plate machining center automatic control system (optional bus control, absolute value encoding, origin memory system). The secondary development by Jinhong Company supports mouse and keyboard, 8G large storage U disk, and Internet transmission.
2. Adopt Japan Yaskawa series servo.
4. Lubrication system:
Use American-owned Becchier lubricating oil pump. The oil pump is automatically controlled by the system to refuel according to the demand at a fixed time and quantitatively.
5. Control cabinet, electrical system
1. The control cabinet is completely sealed, and the double ventilation device cools down the electrical components cyclically. (Optional smart air conditioner can automatically adjust the temperature).
2. Airtac pneumatic components are used for key parts of the equipment.
3. Schneider electrical components are used in key parts of the equipment.
4. The signal power line below 4? adopts the high-flexible cable of the famous brand drag chain.
5. Adopt water circulation vacuum pump.
6. Equipment accuracy: geometric accuracy 0.04mm/200mm, repeat positioning accuracy: ≤0.03mm, workpiece processing accuracy: ±0.10mm/200mm

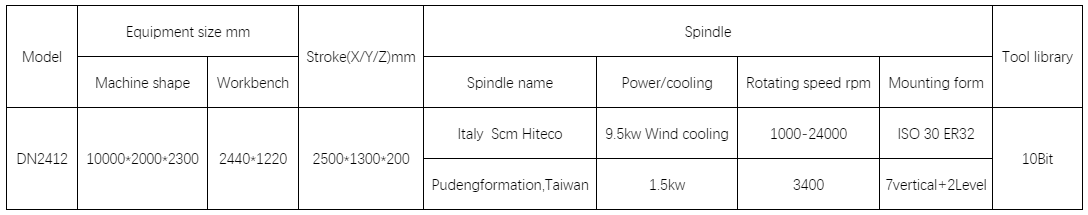

Main model parameters:
