Equipment characteristics:
1. Spindle part

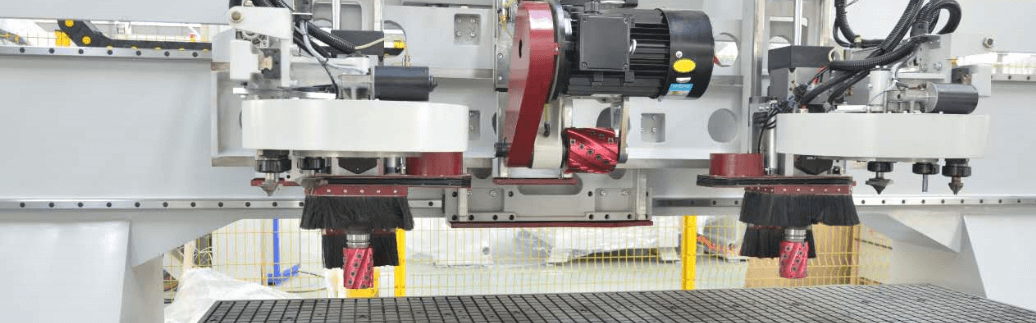

1. The equipment is equipped with 2 imported high rigidity automatic tool-changing engraving and milling spindles imported from Italy, and HSK F63 (ISO30 ER32 optional) is installed to replace the traditional upper router, lower router, and single-axis end mill for rough workpiece Machining allowance cutting, cutting, punching, milling, craftsmanship, reproducible production, using two spindles can process the same two workpieces at one time.

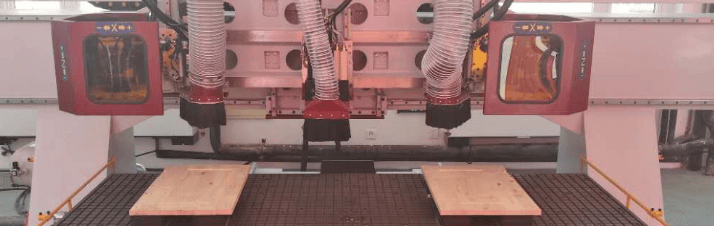

2. The 7 vertical + 4 horizontal drilling set imported from Italy or Taiwan is used in the middle to realize rapid vertical drilling and side drilling on the workpiece.
3. A side horizontal milling spindle can be selected in the middle. The side-horizontal milling spindle can quickly process the surface of the workpiece in plane or curved shape. The circular saw with a diameter of ≯205mm can be used for regular and precise cutting of the workpiece in the direction of 0° and 90°. The two ends of the horizontal milling spindle are equipped with milling cutters. The work piece can be processed by the mortise and tenon hole and the side drawing grooving process.
Spindle distribution two,
Features:
1. The machine tool is a fixed-column and fixed-beam worktable mobile (or gantry mobile machining center), with high mechanical precision, high strength and high constant performance.
2. The bed adopts a double-layer structure: the foundation adopts a rectangular skeleton structure, and the upper workbench adopts a separate skeleton structure to ensure the rigidity of the equipment table surface (avoid dents), increase the overall rigidity of the equipment, and increase stability.
3. The bed and column of the machine tool adopt low-stress cast steel structural parts, and adopt the secondary annealing and tempering heat treatment process to ensure the elimination of internal stress and ensure the accuracy and stability of the machine tool. The Z-axis ram and transmission part are Casting structure.

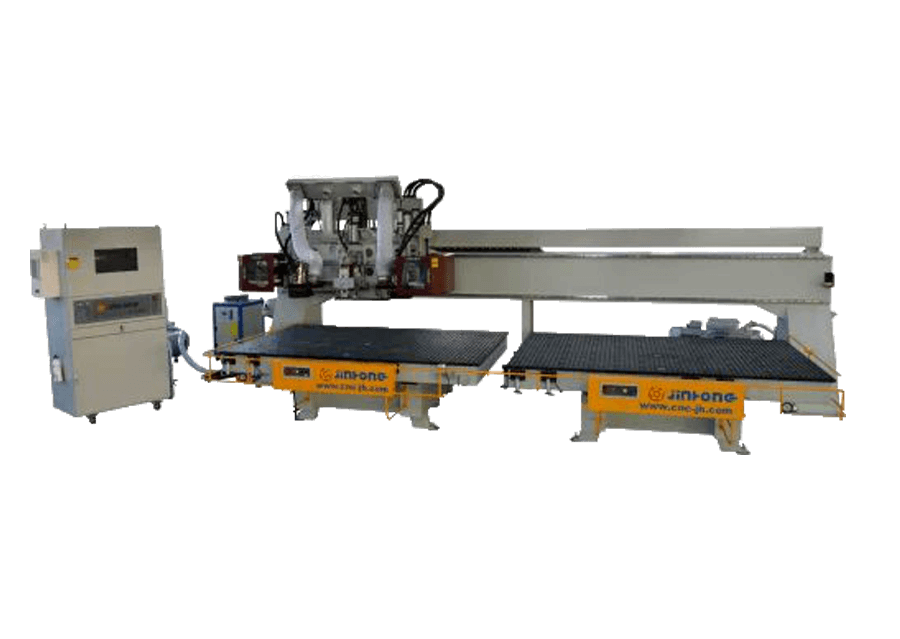

4. The dual-table design saves time for loading and unloading workpieces and realizes rapid batch processing.
5. The Z-axis servo with brake function can effectively prevent the possibility of various accidents caused by sudden power failure and overall sliding of the Z-axis. The X and Y axis adopt the screw fixed screw nut rotation mode, which increases the transmission efficiency and accuracy while providing high stability and high aspect ratio.
Three, system, drive
1. Taiwan's new generation 20M A main system. The secondary development by Jinhong Company, supports mouse and keyboard, and supports Internet transmission with other computers.
2. Adopting the latest series of servo bus control from Yaskawa, Japan, absolute coding technology, memorizing the mechanical origin, no need to return to the origin when starting up.
Fourth, the transmission part
1. Choose Taiwan HIWIN ball type linear guide, Taiwan TBI ball screw
2. Choose Taiwan HIWIN slider and Japanese NS high-speed bearing.
Five, lubrication system
1. Use American-owned Becchier lubricating oil pump. The oil pump is automatically controlled by the system to refuel according to the demand at a fixed time and quantitatively.
Six, control cabinet, electrical system
1. The control cabinet is completely sealed, and the temperature is automatically adjusted by the intelligent air conditioner.
2. Airtac pneumatic components are used for key parts of the equipment.
3. Schneider electrical components are used in key parts of the equipment.
4, 4? The following signal power cables use well-known brand drag chain high-flex cables
5. Adopting EUROVAC vacuum pump from Taiwan
Seven, equipment accuracy
1. Geometric accuracy 0.04mm/200mm Repeat positioning accuracy: ≤0.03mm Workpiece machining accuracy: ±0.1mm/200mm

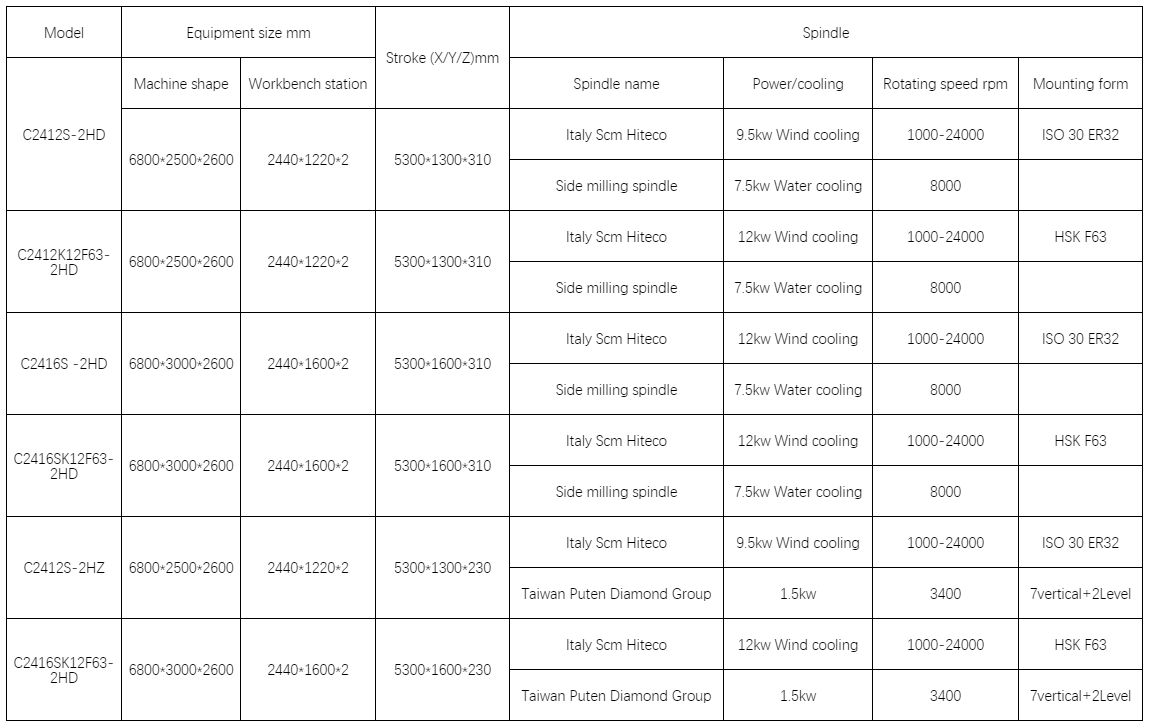

Main model parameters:
Remarks: The middle module, horizontal milling module, drilling group module, and CNC circular saw module are optional
