1. Scope of application:
2. Technical parameters:
3、Features:

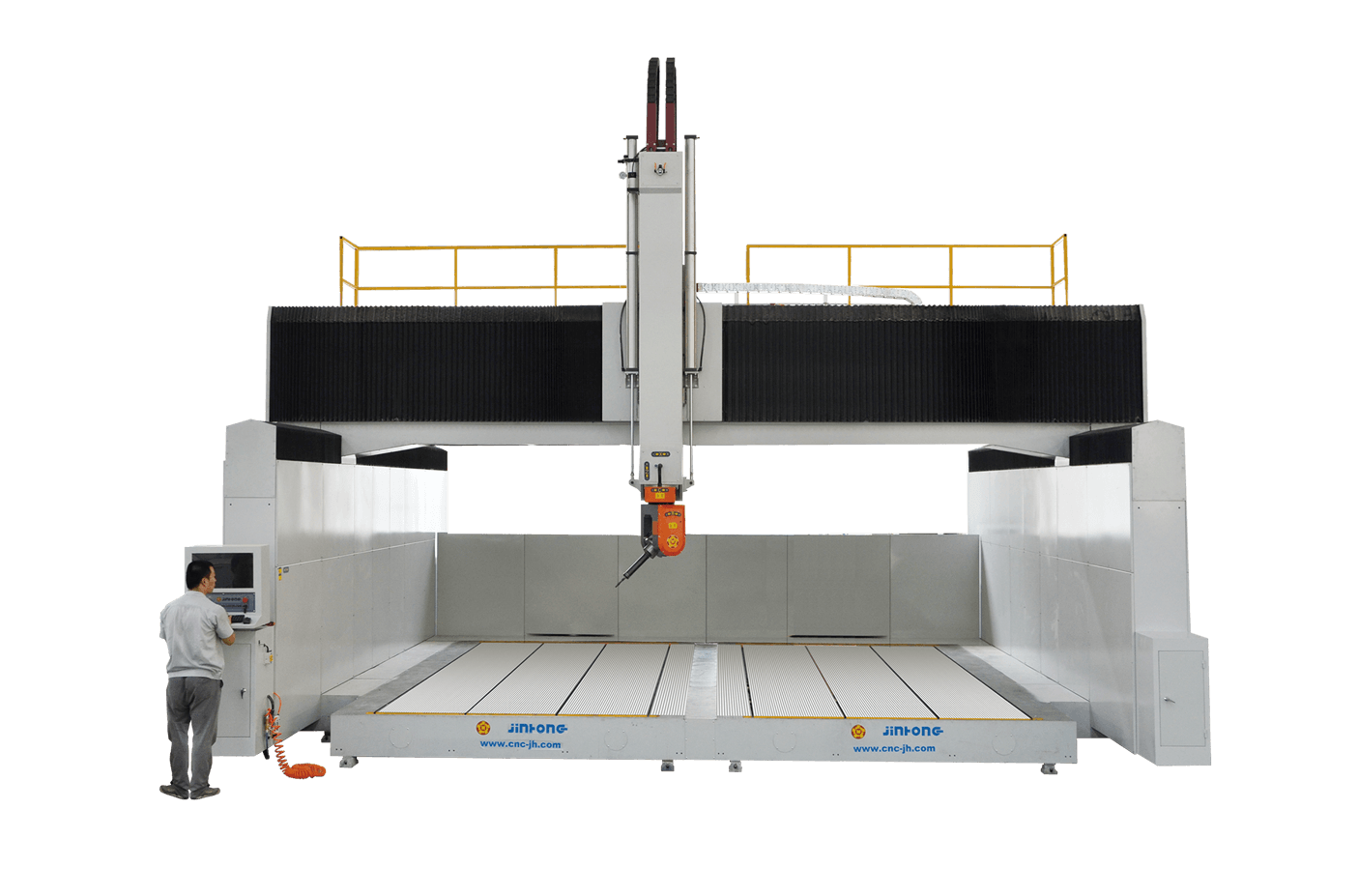

1. A true five-axis linkage machining center with RTCP tool automatic compensation function.
2. Axes B and C are driven by Jinhong CNC worm gears with high rigidity and low backlash, with greater torque.
3. The integral part casting structure of the equipment, full screw drive beam moving machining center
4. The whole equipment is in the shape of a hole, and the cast body and the high rigid connection ensure the stability and processing quality of the equipment at high speed.
5. The workbench is equipped with a T-slot for installing φ16 nuts, which is used to install and fix the workpiece pressing plate.
6. Adopt Taiwan's new generation secondary development WINCE system, support mouse and keyboard, support 8G USB storage, support Internet transmission and data collection.
The 7.21-inch Chinese large display screen, guided operation and parameter adjustment, all Chinese module display, simple operation.
8. X, Y, Z directions adopt well-known brand screw rods, guide rails and sliders made in Taiwan, double drive in Y direction, and high aspect ratio design with fixed screw nut rotation by screw rod. The moving part is equipped with an automatic lubrication module, and the system controls regular and quantitative oil lubrication.
9. Adopt Japanese Yaskawa servo control system and servo motor, high-quality operation system to ensure fast response operation of calculation program data. The device bus control, absolute coding, and power-off memory function can ensure that the re-processing of sudden power-off during continuous work does not need to return to the origin, and the system automatically remembers the coordinates before the power-off and continues to work.
10. Taiwan Delta inverter can freely control the spindle speed through programming.
4, equipment application:
